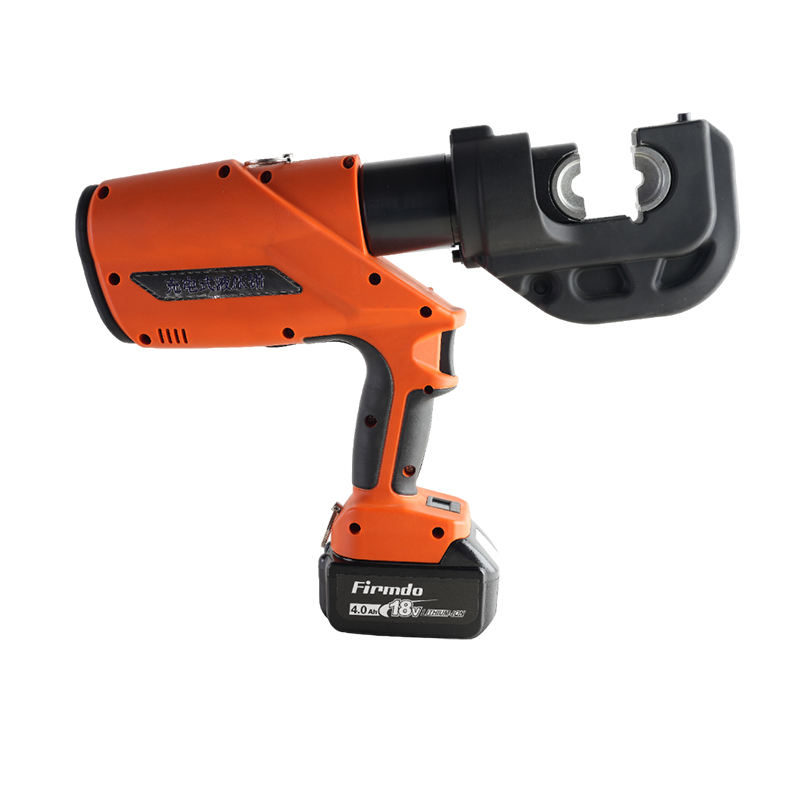

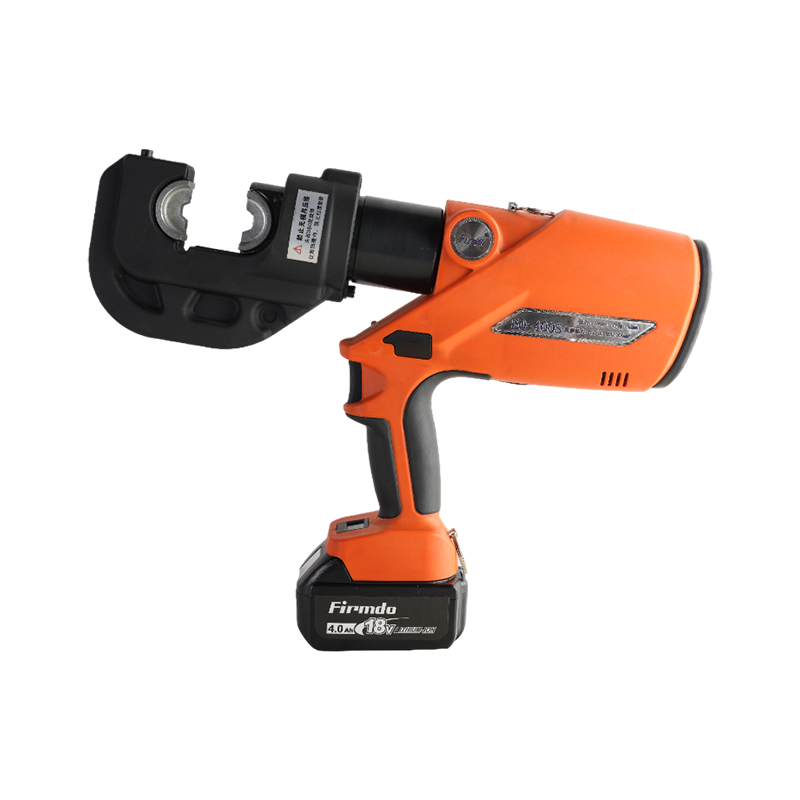

BHC-400 Battery powered crimping tool

PERFORMANCE CHARACTERISTICS：

With C-shape head, cable can be directly placed between dies

Pistol Type Tool Body designed for better balance and easy handling

Two-button-control concept for easy operation by one hand

Manually retract ram in case of need

Quickly stop motor for safety when release trigger switch

Ram stay in position when release switch and can be partially retracted

Powerful motor ensure quick crimping

Li-ion battery with high capacity and require short charging time

LED illuminate work area

Specification:

Output: 13T(130KN)

Ram Stroke:42mm

Crimping profile: Hexagon

Crimping capacity: 10-400mm2

Battery voltage: 18V

Battery Capacity: 3.0-5.0Ah (Li-ion)

Charging time: 60 minutes

Dimension: 420x325x73mm

Weight: 7.8kgs



Standard accessories:

Crimping dies: 11 Pairs(10,25,35,50,70,95,120,150,185,240,300,400mm2)

Battery: 2pcs    Strap: 1pc   Charger: 1pc  Plastic case: 1pc



DESCRIPTIONS：

The BHC-400 is a battery powered hydraulic crimping tool. It is suitable for crimping Cu/AL cable connectors and lugs for cable connection and termination job, designed with:

C-shape free rotation head

Pistol type tool body

Trigger switch

Manual retract button

Energy saving function

Quick Motor Stop Function

Pressure holding function

Powerful Motor

18V Li-ion Battery

LED illumination

LED display
